Energy-saving Full Servo Mattress Pad Machine Underpad Production Line Auto Stacker

Brand Name:	Womeng
Model Number:	WM-SYU04
MOQ:	1 Set
Price:	$400000-$500000
Packaging Details:	Seaworthy Wooden Box
Payment Terms:	L/C,D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Fujian China

Certification:

SGS\CE\ISO

Color:

Can Be Customized

Condition:

Machine Weight:

About 70 Tons

Folding System:

Vacuum Folding

Waste Disposal System:

Automatic Waste Disposal System

Core Components:

PLC, Engine, Pressure Vessel, Gear

Packaging System:

Auto Stacker (Customized Design)

Product Type:

Automatic

Raw Material:

Non-woven Fabric, Fluff Pulp, SAP

Supply Ability:

12 Sets/Year

Highlight:

energy-saving mattress pad machine

full servo underpad production line

auto stacker underpad making machine

Product Description

Product size	26m5m3m(for reference only)
Product structure	Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet, discarding sticker.
Control system	PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system	Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings.
Tension system	Top tissue paper,bottom tissue paper,top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B shaft active unwinding by inverter motor.
Safety system	It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system	according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system	Materials corrective system: Adopt international famous brand deviation correction system
Power	240V, 50HZ three phase five wire
Machine Capacity	400KW (Excluding glue machine and air compressor)
Bleed pressure	0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight	70 Tons approximately

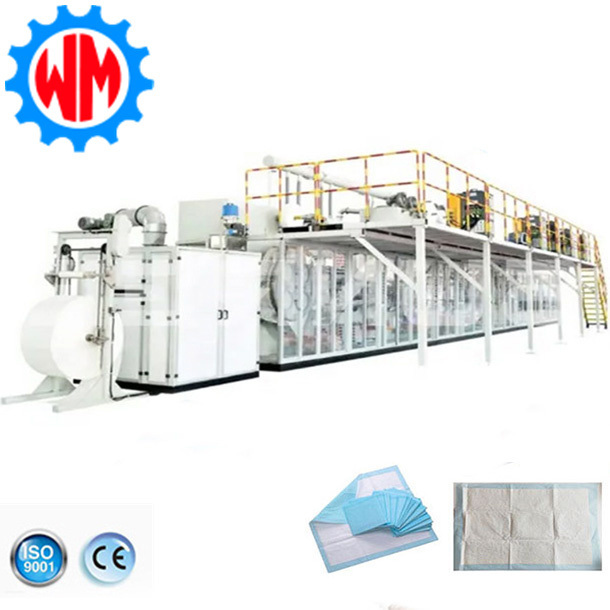

Energy-saving Full Servo Mattress Pad Machine Underpad Production Line Auto Stacker 0

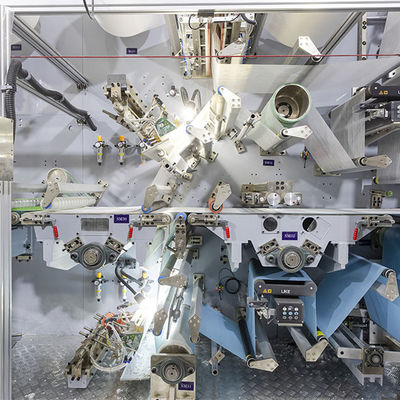

Energy-saving Full Servo Mattress Pad Machine Underpad Production Line Auto Stacker 1

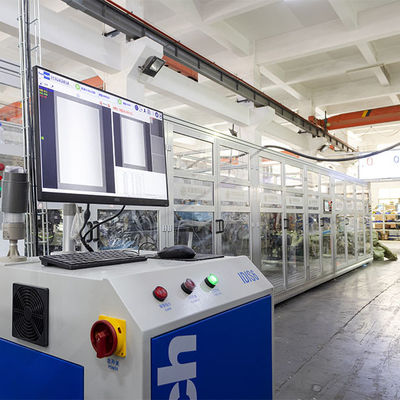

Energy-saving Full Servo Mattress Pad Machine Underpad Production Line Auto Stacker 2

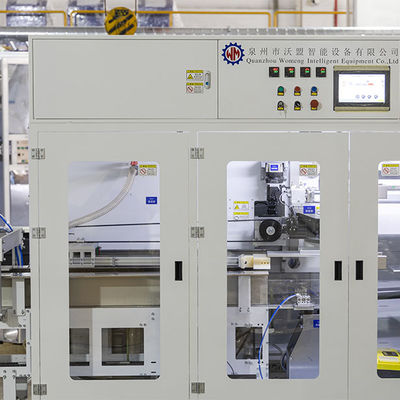

Energy-saving Full Servo Mattress Pad Machine Underpad Production Line Auto Stacker 3

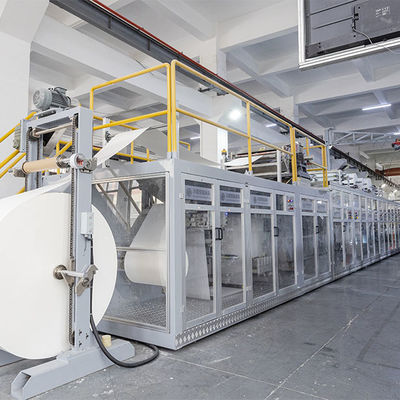

Energy-saving Full Servo Mattress Pad Machine Underpad Production Line Auto Stacker 4

Energy-saving Full Servo Mattress Pad Machine Underpad Production Line Auto Stacker 5

Energy-saving Full Servo Mattress Pad Machine Underpad Production Line Auto Stacker 6

Energy-saving Full Servo Mattress Pad Machine Underpad Production Line Auto Stacker 7

Energy-saving Full Servo Mattress Pad Machine Underpad Production Line Auto Stacker 8

Energy-saving Full Servo Mattress Pad Machine Underpad Production Line Auto Stacker 9

Energy-saving Full Servo Mattress Pad Machine Underpad Production Line Auto Stacker 10

Energy-saving Full Servo Mattress Pad Machine Underpad Production Line Auto Stacker 11

Energy-saving Full Servo Mattress Pad Machine Underpad Production Line Auto Stacker 12

Energy-saving Full Servo Mattress Pad Machine Underpad Production Line Auto Stacker 13

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com

Flexible production adaptation, responding to changes in the global market

Rapid switching between multiple specifications and categories:

With the precise control of the full servo system, the production of different sizes such as 30×30cm pet urine pads, 60×90cm adult care pads, and 150×80cm medical mattresses can be switched by changing a small number of molds, covering the needs of all categories including mother and baby, elderly care, medical care, and pets. The switching process only takes 30 to 40 minutes, which can quickly adapt to the differentiated demands of large-sized medical models in the European and American markets and economical household models in the Southeast Asian markets.

Flexible production capacity to meet order demands:

The production speed can be freely adjusted within the range of 100 to 350 meters per minute. In high-speed mode, the average daily production capacity can reach hundreds of thousands of pieces, which can meet the urgent delivery needs of overseas bulk orders. The low-speed mode supports small-batch trial production starting from 3,000 pieces, facilitating buyers to test product formulas and patterns for new markets, verify acceptance before expanding production capacity, and reduce the risk of inventory overstock.
