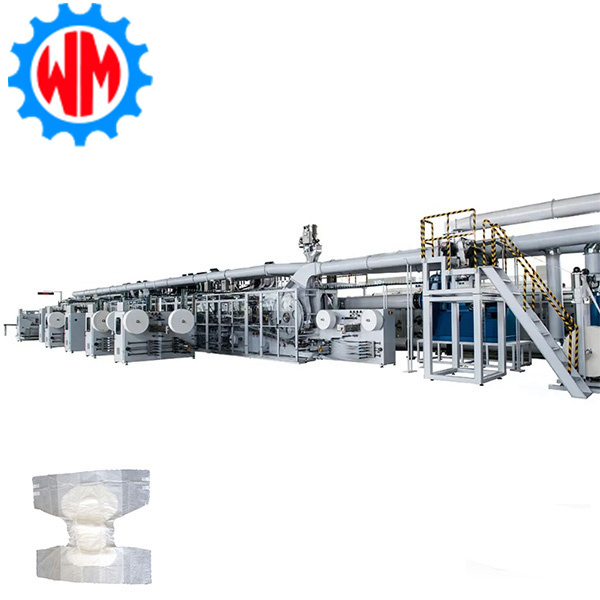

Adult Diaper Making Machine
>
Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators

Brand Name: Womeng
Model Number: WM-FJA03
MOQ: 1 piece
Price: $500,000.00-$800,000.00
Packaging Details: Seaworthy Wooden Box
Payment Terms: L/C,D/A,D/P,T/T
Detail Information
Place of Origin:
Fujian,China
Certification:
CE
Efficiency:
≥95%
Production Speed:
250-400pcs/min
Functions:
Automatic Feeding, Cutting, And Stacking
Application:
Manufacturing Adult Diapers
Operating System:
Fully Automatic
Control System:
PLC Control
Design:
Full Servo Control System
Machine Color:
According To Customized
Material:
Non-woven Fabric, SAP, Fluff Pulp
Supply Ability:
12sets/year
Product Description

Product Info

Product size
M: 680X450 L: 800X650 XL: 950X760(Customixed according to customer requirement)
Product structure
Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.
Control system
PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system
Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings.
Tension system
Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B
shaft active unwinding by inverter motor.
Safety system
It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system
Materials corrective system: Adopt international famous brand deviation correction system
Power
380V, 50HZ three phase five wire
Machine Capacity
400KW (Excluding glue machine and air compressor)
Bleed pressure
0.6-0.8Mpa (Air compressor needs to be prepared by customers)

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 0

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 1

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 2

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 3

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 4

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 5

Quanzhou Womeng Intelligent Equipment Co., Ltd. is located in Quanzhou, the cultural capital of East Asia and the starting point of the Maritime Silk Road. Founded in 2016, it is an enterprise focusing on the R&D, manufacturing and sales of paper equipment. The products cover sanitary napkin equipment, diaper equipment, pant equipment, mattress equipment, pad equipment, etc.
The company has excellent products, professional sales and technical teams, complete supporting facilities, and according to different market product specifications, each equipment is customized according to the actual needs of users, and has rich experience and technical capacity in the design and production of equipment.
Adhering to the business philosophy of honesty, cooperation and win-win, the company wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the greatest extent. Serving customers and achieving customers, "pioneering and innovating, pursuing excellence" is the constant pursuit of Womeng Equipment. We sincerely look forward to cooperating with new and old customers to create the future!

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 6

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 7


Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 8

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 9

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 10

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 11

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 12

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 13

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 14

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 15

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 16

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 17

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 18

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 19

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 20

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 21

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 22

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 23

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 24

Hot Sell Advanced 350pcs/min Adult Diaper Production Line with 2-3 Operators 25

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com



Energy consumption and cost optimization


Low-energy consumption design: Core energy-consuming components such as motors and heating systems are equipped with energy-saving configurations, which can reduce power consumption by 10% to 15% compared to similar equipment. Long-term use can significantly lower the operating costs of the factory.


Compact layout saves space: The overall structure of the production line is compact, with the floor area being 8% to 10% less than the industry average. It is particularly suitable for small and medium-sized factories with limited factory space, improving the utilization rate of the site.


Compliance and Compatibility


Conforming to international standards: The diapers produced can meet the hygiene and safety standards of major markets such as the EU CE and the US FDA, and can be adapted to the access requirements of the target market without additional modification.


Support for local adjustment: The parameters of the production line can be quickly adjusted based on the user's body type (such as waist circumference range) and usage habits (such as whether to wear side stickers) in the customer's region, without the need for large-scale equipment modification.


Reliable after-sales support


Rapid response to spare parts: We have spare parts warehouses in major global regions such as Southeast Asia, South America, and Europe. Commonly used components can be delivered within 72 hours, reducing production halts caused by waiting for spare parts.


Technical guidance and implementation: We offer on-site installation and commissioning services, along with detailed paper/video operation manuals. Later, we can assist in solving common faults through remote video, lowering the technical threshold for customers.
