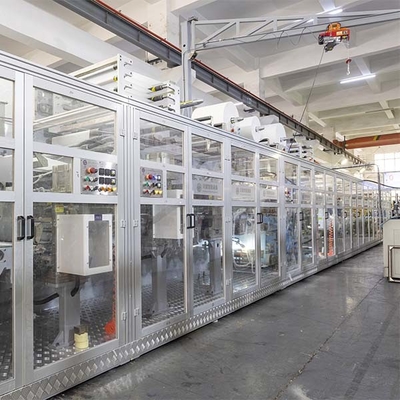

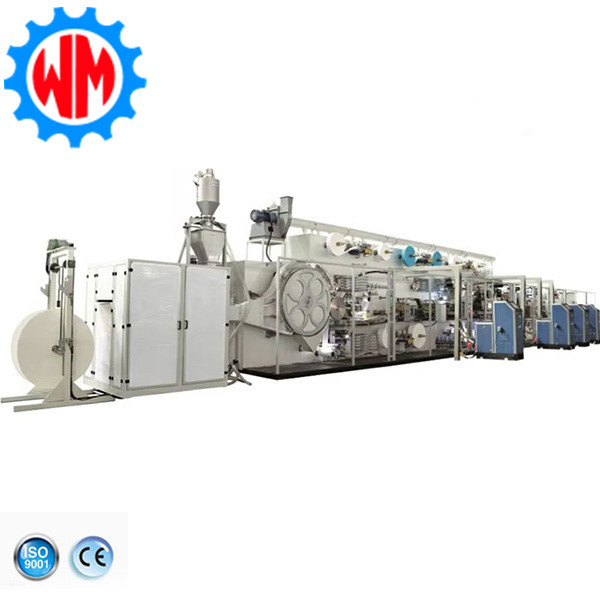

2025 New Disposable Medical Under Pad Production Line with Packaing System

Low-Cost Adult Diaper Underpad Making Machine - 40% Energy Saving for Indian SMEs

Quanzhou Womeng Intelligent Equipment Co., Ltd. is located in Quanzhou, the cultural capital of East Asia and the starting point of the Maritime Silk Road. Founded in 2016, it is an enterprise focusing on the R&D, manufacturing and sales of paper equipment. The products cover sanitary napkin equipment, diaper equipment, pant equipment, mattress equipment, pad equipment, etc.
The company has excellent products, professional sales and technical teams, complete supporting facilities, and according to different market product specifications, each equipment is customized according to the actual needs of users, and has rich experience and technical capacity in the design and production of equipment.
Adhering to the business philosophy of honesty, cooperation and win-win, the company wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the greatest extent. Serving customers and achieving customers, "pioneering and innovating, pursuing excellence" is the constant pursuit of Womeng Equipment. We sincerely look forward to cooperating with new and old customers to create the future!

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com

Underpad Making Machine Mechanical Structure

1. Material Unwinding System

• Non-woven Fabric Roll: Feeds the top/bottom layers via servo-controlled unwinders.
• Absorbent Core Roll: Delivers SAP (Super Absorbent Polymer) or fluff pulp layers with tension adjustment.Underpad Make Machine

2. Lamination Unit

• Thermal Bonding Section: Heated rollers fuse layers (temperature range: $120-180°C$) with adjustable pressure.
• Adhesive Application: Spray nozzles apply hot-melt glue between layers (coverage: $2-4g/m^2$).

3. Absorbent Core Formation

• Airlaid System: Pneumatic fiber dispersion creates uniform core thickness (precision: $\pm 0.5mm$).Underpad Make Machine
• SAP Integration: Gravimetric dosing system mixes SAP with pulp at $10-40\%$ ratio.

4. Embossing & Cutting

• Rotary Die Cutter: High-speed steel blades (hardness: $HRC58-62$) cut pads at up to $120pieces/min$.
• Servo-driven Slitter: Laser-guided system trims edges (tolerance: $\pm 0.3mm$).

5. Folding & Packaging

• Accordion Folder: Creates Z-fold patterns via programmable cam mechanisms.
• Vertical Flow Wrap: Multi-jaw rotary sealer packages pads in PE film (seal strength: $\ge 3N/15mm$).

6. Control Systems

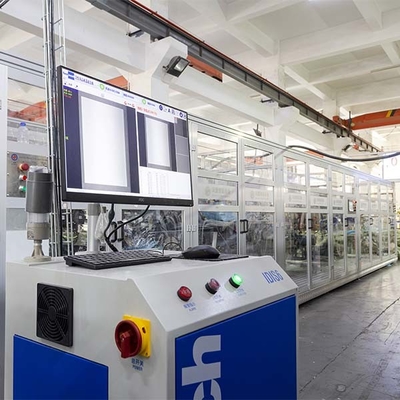

• PLC Interface: Siemens S7-1200 with HMI touchscreen monitors production parameters.
• Machine Vision: CCD cameras inspect pad dimensions (resolution: $0.1mm/pixel$).

Technical Parameters

• Max Width: $600-1200mm$
• Line Speed: $50-150m/min$
• Power: $25kW$ (3-phase $380V/50Hz$)

Underpad Make Machine,Disposable Medical Underpad Make Machine,Hospital Under Pad Make Machine,Disposable Medical Under Pad Make Machine,Medical Under Pad Make Machine

Q1: Why choose our machine?
A: 1.we are professional factory with high quality and competitive price.
     2. 24 Hours Online Service (after sales of before sales )
     3. 12 Months quality warranty
     4. Engineers available to service machinery overseas
Q2: How to operate and maintain the machine?
     1. We will provide a professional technicist to you if you need .
     2. Our technicist can help you till your workers can open machine well ( buyers need to pay the expenses for this technicist);
Q3: Do you have QC or any safety standards for machine?
     Yes, we have established a highly strict quality control department to guarantee good quality.
Q4: How to find the matching accessories or wearing parts of the machine?
     You can buy it from us with favorable price or from other place near you, most of our accessories and wearing parts are standard for you.

Q5:How much is this machine?

    1. Please tell me what's the width of jumbo roll(parent roll) will you process?

    2. Do you need embossing unit or printing unit?

    3. What's the daily capacity of machine do you need?
