Underpad Making Machine
>

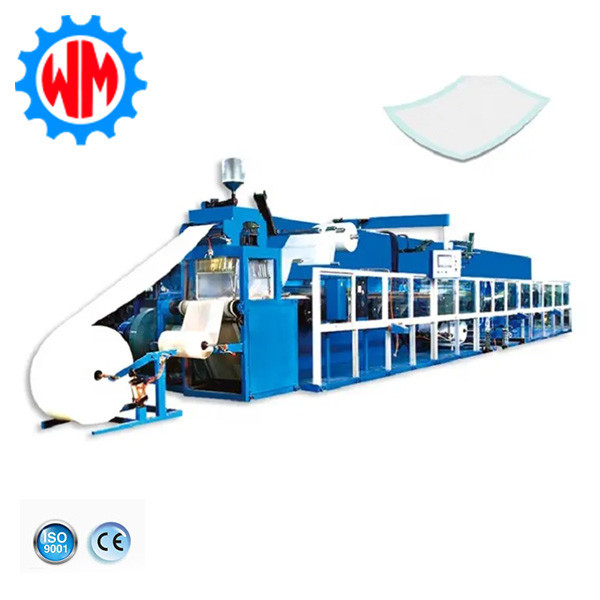

High Efficiency Underpad Production Line 250 Meters/Min CE Approval

High Efficiency Underpad Production Line 250 Meters/Min CE Approval

Brand Name: Womeng
Model Number: WM-FUD16
MOQ: 1
Price: $300,000.00-$550,000.00
Packaging Details: Seaworthy Wooden Box
Payment Terms: L/C,D/A,D/P,T/T
Detail Information
Place of Origin:
Fujian,China
Certification:
CE
Conditon:
New
Machinery Test Report:
Provided
Packaging System:
Auto Stacker (Customized Design)
Working Speed:
250 Meters/min
Waste Disposal System:
Automatic Waste Disposal System
Control System:
PLC Control System
Automatic Grade:
Full Automatic
Color:
Can Be Customized
Supply Ability:
24sets/year
Highlight:

High Efficiency Underpad Production Line

,

Underpad Production Line CE

,

250 Meters/Min underpad machine

Product Description

Production Description


The production line is composed of advanced equipment to achieve efficient operation. The raw materials are quickly transported to the composite process through a precise feeding system, where the hot melt composite equipment is precisely controlled by temperature and pressure, and the fitting is tight and efficient, which is 30% faster than the traditional process. The molding equipment can accurately produce different specifications of nursing pads through intelligent regulation. The automatic equipment in the packaging area completes sorting, bagging and sealing in one go to ensure the efficient and stable operation of the production line.



Product Info


Product size
26m*5m*3m(for reference only)
Product structure
Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.

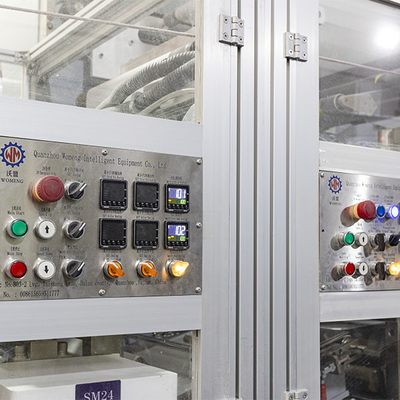

Control system
PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system
Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings.

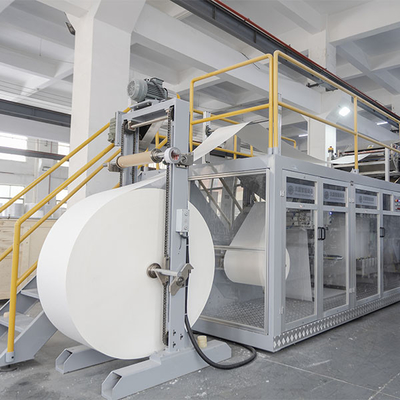

Tension system
Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B
shaft active unwinding by inverter motor.
Safety system
It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system
Materials corrective system: Adopt international famous brand deviation correction system
Power
380V, 50HZ three phase five wire
Machine Capacity
400KW (Excluding glue machine and air compressor)
Bleed pressure
0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight 70 Tons approximately

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 0

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 1

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 2

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 3

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 4

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 5

Quanzhou Womeng Intelligent Equipment Co., Ltd. is located in Quanzhou, the cultural capital of East Asia and the starting point of the Maritime Silk Road. Founded in 2016, it is an enterprise focusing on the R&D, manufacturing and sales of paper equipment. The products cover sanitary napkin equipment, diaper equipment, pant equipment, mattress equipment, pad equipment, etc.
The company has excellent products, professional sales and technical teams, complete supporting facilities, and according to different market product specifications, each equipment is customized according to the actual needs of users, and has rich experience and technical capacity in the design and production of equipment.
Adhering to the business philosophy of honesty, cooperation and win-win, the company wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the greatest extent. Serving customers and achieving customers, "pioneering and innovating, pursuing excellence" is the constant pursuit of Womeng Equipment. We sincerely look forward to cooperating with new and old customers to create the future!

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 6

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 7


High Efficiency Underpad Production Line 250 Meters/Min CE Approval 8

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 9

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 10

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 11

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 12

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 13

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 14

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 15

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 16

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 17

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 18

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 19

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 20

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 21

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 22

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 23

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 24

High Efficiency Underpad Production Line 250 Meters/Min CE Approval 25

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com



The ability to respond to emergencies


Emergency production adjustment mechanism: In the face of emergency situations such as public health emergencies and natural disasters, the demand for health products such as nursing pads may increase dramatically. The care mat production line has a rapid emergency production adjustment ability, enterprises can adjust the production plan in a short time, increase the running time of the production line, and improve the production efficiency of the equipment. At the same time, through close cooperation with raw material suppliers, to ensure the stable supply of raw materials, rapidly increase production capacity, to meet the market in emergency situations for the large demand for care pads, show the social responsibility of the company, but also for the company to win the market reputation. ​


Equipment failure emergency response plan: The production line has developed a complete equipment failure emergency response plan. For possible equipment failure, stock key parts and maintenance tools in advance, and establish a professional emergency maintenance team. Once the equipment fails, the maintenance team is able to respond quickly, quickly diagnose the cause of the failure and repair it according to the processes and methods in the emergency plan. At the same time, through the switching of standby equipment and the temporary adjustment of the production process, the impact of equipment failure on production is minimized, the continuous operation of the production line is guaranteed, and the product supply is not interfered.


IF you want to know anything else,please contact us!
