Baby Diaper Making Machine
>

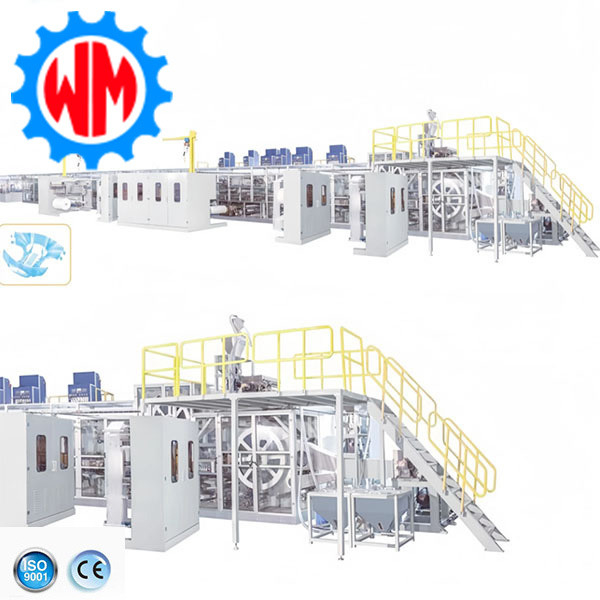

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism

Brand Name: Womeng
Model Number: WM-FSB32
MOQ: 1
Price: $500,000.00-$800,000.00
Packaging Details: Seaworthy Wooden Box
Payment Terms: T/T,D/P,D/A,L/C
Detail Information
Place of Origin:
Fujian,China
Certification:
CE
Raw_Material:
Fluff Pulp, SAP, Non-woven Fabric, PE Film
Production_Speed:
600-800 Pieces/minute
Origin:
China
Warranty:
1 Year
Operation_Interface:
Touch Screen
After-Sales_Service:
Engineers Available To Service Machinery Overseas
Application:
Production Of Baby Diapers
Control_System:
PLC Control
Supply Ability:
24sets/year
Highlight:

plc diaper machine manufacturing

,

plc diaper manufacturing machine

,

sap diaper machine manufacturing

Product Description

Product Descripiton

This production line has increased investment in quality detection technology to provide a strong guarantee for product quality. The optical inspection technology is used to detect the appearance of the diaper in an all-round way, which can quickly identify the defects and stains on the surface of the product. In terms of absorption performance detection, professional liquid simulation test devices are used to accurately measure the absorption speed and absorption amount of diapers. These advanced testing technologies ensure that every piece of diaper meets high quality standards, so that consumers can buy with confidence.



Product Info


Product size
25m*6m*3m(for reference only)
Product structure
Upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.
Control system
PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system
Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings.
Tension system
Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B
shaft active unwinding by inverter motor.
Safety system
It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system
Materials corrective system: Adopt international famous brand deviation correction system
Power
380V, 50HZ three phase five wire
Machine Capacity
400KW (Excluding glue machine and air compressor)
Bleed pressure
0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight 70 Tons approximately

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 0

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 1

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 2

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 3

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 4

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 5

Quanzhou Womeng Intelligent Equipment Co., Ltd. is located in Quanzhou, the cultural capital of East Asia and the starting point of the Maritime Silk Road. Founded in 2016, it is an enterprise focusing on the R&D, manufacturing and sales of paper equipment. The products cover sanitary napkin equipment, diaper equipment, pant equipment, mattress equipment, pad equipment, etc.
The company has excellent products, professional sales and technical teams, complete supporting facilities, and according to different market product specifications, each equipment is customized according to the actual needs of users, and has rich experience and technical capacity in the design and production of equipment.
Adhering to the business philosophy of honesty, cooperation and win-win, the company wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the greatest extent. Serving customers and achieving customers, "pioneering and innovating, pursuing excellence" is the constant pursuit of Womeng Equipment. We sincerely look forward to cooperating with new and old customers to create the future!

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 6

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 7


Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 8

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 9

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 10

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 11

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 12

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 13

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 14

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 15

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 16

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 17

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 18

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 19

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 20

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 21

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 22

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 23

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 24

Optimized Production Baby Diaper Manufacturing Machine With Feedback Mechanism 25

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com


Establish an emergency support system


Fault emergency handling: The production line is equipped with real-time fault monitoring and emergency handling system. Once the equipment is abnormal, the system can respond within milliseconds and automatically start the spare parts to maintain the operation of key production links. At the same time, a detailed fault report is quickly sent to enterprise management and after-sales team, and the after-sales team immediately guides or arranges personnel to go to the scene remotely to minimize the impact of equipment failure on production. ​


Emergency plan: The production line supports quick switching of production mode for possible raw material supply interruption, power failure and other emergencies. For example, when a certain raw material is in short supply, the system can automatically adjust the proportion of the formula and use alternative raw materials to continue production; In case of a temporary power outage, the emergency power supply can guarantee the operation of key equipment for a certain period of time to ensure production



Personnel simplification and efficiency:


Highly automated production lines greatly reduce the reliance on labor, and repetitive tasks that would otherwise require a lot of manpower are accurately completed by equipment. Enterprises can streamline the number of production personnel, concentrate manpower into more valuable product research and development, quality control and other links, improve the overall human efficiency, reduce labor costs. ​


Staff skills improvement: to provide operators with rich training resources and promotion channels. With the help of intelligent operation interface and remote training system, employees can quickly master advanced operation skills. With the in-depth understanding of the production line and the accumulation of operational experience, they have the opportunity to be promoted to technical management positions, improve employee satisfaction and loyalty, and promote the construction of enterprise talent team.
