Baby Diaper Making Machine
>

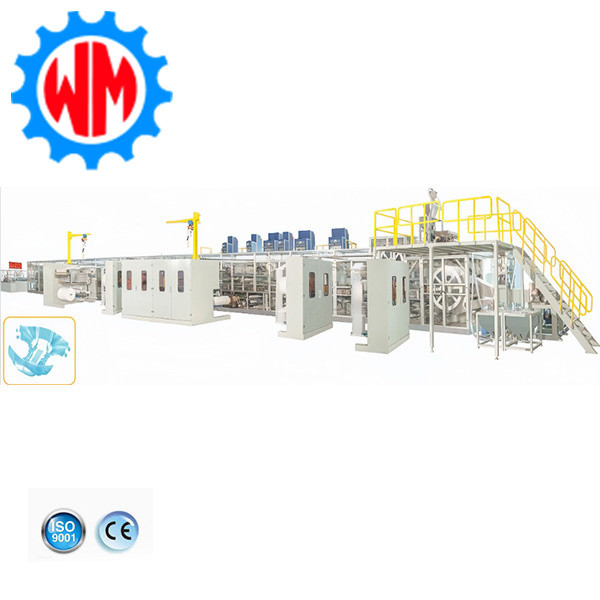

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing

Brand Name: Womeng
Model Number: WM-FSB31
MOQ: 1
Price: $500,000.00-$800,000.00
Packaging Details: Seaworthy Wooden Box
Payment Terms: T/T,D/P,D/A,L/C
Detail Information
Place of Origin:
Fujian,China
Certification:
CE
Material:
Non-woven Fabric, SAP, Fluff Pulp
Application:
Production Of Disposable Baby Diapers
Type:
Fully Automatic
Production Process:
Folding, Cutting, Sealing, Stacking
Operator Interface:
Touch Screen
Power Supply:
380V, 50Hz
Control System:
PLC
Warranty:
1 Year
Supply Ability:
24sets/year
Highlight:

advanced diaper production line

,

advanced diapers production line

,

sap diaper production line

Product Description

Product Descripiton

This production line has increased investment in quality detection technology to provide a strong guarantee for product quality. The optical inspection technology is used to detect the appearance of the diaper in an all-round way, which can quickly identify the defects and stains on the surface of the product. In terms of absorption performance detection, professional liquid simulation test devices are used to accurately measure the absorption speed and absorption amount of diapers. These advanced testing technologies ensure that every piece of diaper meets high quality standards, so that consumers can buy with confidence.



Product Info


Product size
25m*6m*3m(for reference only)
Product structure
Upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.
Control system
PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system
Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings.
Tension system
Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B
shaft active unwinding by inverter motor.
Safety system
It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system
Materials corrective system: Adopt international famous brand deviation correction system
Power
380V, 50HZ three phase five wire
Machine Capacity
400KW (Excluding glue machine and air compressor)
Bleed pressure
0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight 70 Tons approximately

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 0

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 1

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 2

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 3

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 4

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 5

Quanzhou Womeng Intelligent Equipment Co., Ltd. is located in Quanzhou, the cultural capital of East Asia and the starting point of the Maritime Silk Road. Founded in 2016, it is an enterprise focusing on the R&D, manufacturing and sales of paper equipment. The products cover sanitary napkin equipment, diaper equipment, pant equipment, mattress equipment, pad equipment, etc.
The company has excellent products, professional sales and technical teams, complete supporting facilities, and according to different market product specifications, each equipment is customized according to the actual needs of users, and has rich experience and technical capacity in the design and production of equipment.
Adhering to the business philosophy of honesty, cooperation and win-win, the company wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the greatest extent. Serving customers and achieving customers, "pioneering and innovating, pursuing excellence" is the constant pursuit of Womeng Equipment. We sincerely look forward to cooperating with new and old customers to create the future!

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 6

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 7


2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 8

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 9

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 10

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 11

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 12

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 13

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 14

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 15

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 16

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 17

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 18

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 19

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 20

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 21

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 22

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 23

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 24

2025 New Advanced SAP Baby Diaper Production Line With Comprehensive Material Testing 25

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com


Broaden the boundaries of personalized customization


Functional depth customization: In addition to the conventional leak-proof, water absorption and other functions, the production line can deeply customize product functions according to the special needs of customers. For example, the production of diapers with natural plant antibacterial ingredients for allergic babies, or the design of super elastic and body-curve styles for sports children to accurately meet the individual needs of the market segment. ​


Appearance creative customization: With the help of advanced printing and molding technology, the production line can realize the creative customization of the appearance of diapers. From customized cartoon image, corporate logo, to the design of unique color gradient, three-dimensional shape packaging, to meet the needs of enterprise brand promotion and product differentiation competition.


Precise control of business operating costs


Equipment maintenance cost control: Adopt modular design and standardization of wearing parts, greatly reducing the difficulty and cost of equipment maintenance. Common failures only need to replace standardized modules, greatly shortening maintenance time and reducing production losses caused by equipment downtime. At the same time, the intelligent operation and maintenance system predicts equipment maintenance requirements in advance, and reasonably arranges maintenance plans to avoid excessive maintenance and reduce maintenance costs. ​


Supply chain cost optimization: With extensive influence and rich resources in the industry, we can provide enterprises with supply chain optimization advice. Assist enterprises to select high-quality raw material suppliers, reduce raw material procurement costs through centralized procurement, long-term cooperation and other strategies. At the same time, optimize raw material inventory management, predict raw material consumption with the help of production data, reduce inventory overhang and reduce capital occupation costs.



IF you want to know anything else,please contact us!
