Baby Diaper Making Machine
>

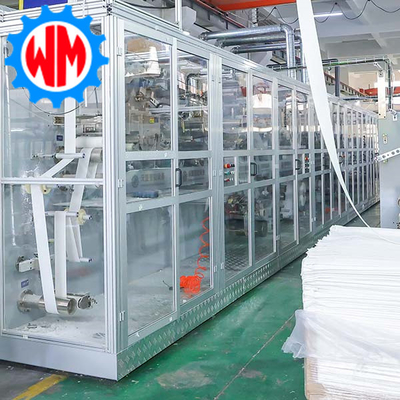

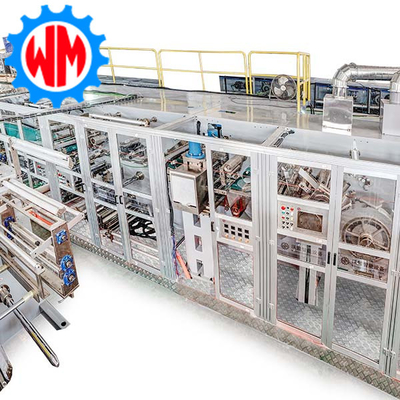

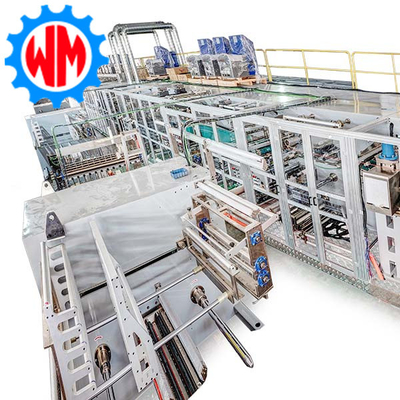

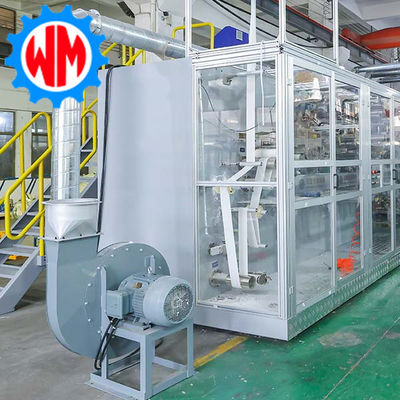

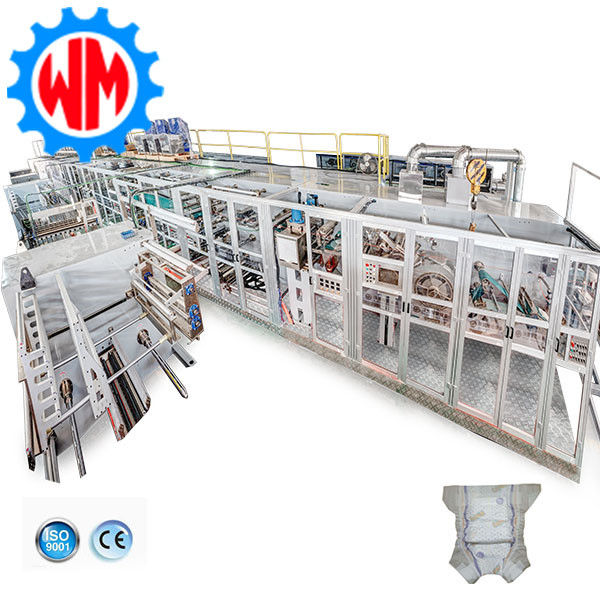

High Speed Full Servo Baby Diaper Production Line PLC Control with Optional Packaging System

High Speed Full Servo Baby Diaper Production Line PLC Control with Optional Packaging System

Brand Name: Womeng
Model Number: WM-FSB06
MOQ: 1
Price: $500,000.00-$800,000.00
Packaging Details: Seaworthy Wooden Boxes
Payment Terms: T/T,D/P,D/A,L/C
Detail Information
Place of Origin:
Fujian,China
Certification:
CE
Features:
High Speed, Stable Performance, Easy Operation
Control System:
PLC Control System
After-Sales Service:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Optional Functions:
Elastic Waistband, Frontal Tape, Side Tape, Leak Cuff
Weight:
70 Tons
Customization:
Available Upon Request
Safety Features:
Emergency Stop, Safety Doors, Sensors
Supply Ability:
30sets/year
Highlight:

plc diaper production line

,

plc diapers production line

,

high speed diaper production line

Product Description

Product Descripiton

In terms of product quality control, this production line has built a rigorous control system. When purchasing raw materials, we establish long-term cooperation with a number of high-quality suppliers, and carry out strict incoming inspection of each batch of raw materials, covering key indicators such as water absorption, air permeability and softness. In the production process, quality inspection points are set up in each process, and workers carry out self-inspection after completing each process, while equipped with full-time quality inspectors for inspection. In the inspection stage of the finished product, the multi-dimensional detection method is used, not only to check the appearance and size, but also to test the absorption performance and leakproof performance of the diaper through the simulation of the use scenario, and the defective rate is strictly controlled within 0.05% to provide high-quality and safe products for the baby.



Product Info


Product size
25m*6m*3m(for reference only)
Product structure
Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.
Control system
PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system
Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings.
Tension system
Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B
shaft active unwinding by inverter motor.
Safety system
It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system
Materials corrective system: Adopt international famous brand deviation correction system
Power
380V, 50HZ three phase five wire
Machine Capacity
400KW (Excluding glue machine and air compressor)
Bleed pressure
0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight 70 Tons approximately

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 0

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 1

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 2

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 3

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 4

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 5

Quanzhou Womeng Intelligent Equipment Co., Ltd. is located in Quanzhou, the cultural capital of East Asia and the starting point of the Maritime Silk Road. Founded in 2016, it is an enterprise focusing on the R&D, manufacturing and sales of paper equipment. The products cover sanitary napkin equipment, diaper equipment, pant equipment, mattress equipment, pad equipment, etc.
The company has excellent products, professional sales and technical teams, complete supporting facilities, and according to different market product specifications, each equipment is customized according to the actual needs of users, and has rich experience and technical capacity in the design and production of equipment.
Adhering to the business philosophy of honesty, cooperation and win-win, the company wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the greatest extent. Serving customers and achieving customers, "pioneering and innovating, pursuing excellence" is the constant pursuit of Womeng Equipment. We sincerely look forward to cooperating with new and old customers to create the future!

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 6

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 7


High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 8

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 9

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 10

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 11

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 12

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 13

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 14

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 15

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 16

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 17

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 18

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 19

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 20

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 21

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 22

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 23

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 24

High Speed Full Servo Baby Diaper Production Line  PLC Control with Optional Packaging System 25

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com





Excellent quality, shape high-end products

Precise control of raw materials:

 The production line is equipped with high-precision sensors in the raw material transportation link, which can monitor each batch of raw materials in real time to ensure that the materials enter the production process evenly and stably, and ensure the quality of diapers from the source.


Advanced production technology:

 The use of unique hot air non-woven technology to make the diaper surface soft and skin-friendly, effectively reduce the friction on the baby's skin; At the same time, the three-dimensional leak-proof design process is used to create a tight-fitting leak-proof edge to prevent urine leakage in all aspects and provide a dry and comfortable experience for the baby.


Strict quality testing:

integrates multiple automated quality testing processes, through pressure testing, water absorption testing, appearance testing and other strict testing, to ensure that every piece of diapers meet high quality standards, to help you establish a good brand image, win the trust of consumers.


Reliable Supplier with OEM & ODM Capabilities

As an experienced diaper production machine manufacturer, we are committed to supporting our clients with tailored solutions. Our team collaborates closely with customers, from understanding initial requirements to providing technical support post-installation. We welcome local distributors, wholesalers, and suppliers to reach out for partnerships, and we are fully equipped to meet the diverse needs of clients worldwide.

For those interested in exploring different machine types, we also offer a range of options, including semi-servo systems for pull-up diapers, training pants, and other variations. Our equipment is designed with versatility in mind, enabling customers to adapt to changing market demands without investing in entirely new machinery.
