Baby Diaper Making Machine
>
Advanced Baby Diaper Making Machine 800pcs/min Stable Production

Advanced Baby Diaper Making Machine 800pcs/min Stable Production

Brand Name: Womeng
Model Number: WM-ABD01
MOQ: 1
Price: $500,000.00-$800,000.00
Packaging Details: Seaworthy Wooden Box
Payment Terms: T/T,D/P,D/A,L/C
Detail Information
Place of Origin:
Fujian,China
Certification:
CE
Product Type:
Automatic
Product Material:
Stainless Steel
Operating System:
Touch Screen
Usage:
Disposable Baby Diaper Production
Size Range:
S, M, L, XL
Safety Features:
Emergency Stop, Safety Doors, Sensors
Condition:
New
Waste Rate:
Less Than 2%
Waistband Type:
Big Ring Waistband
Speed Control:
Frequency Conversion Control
Supply Ability:
30sets/year
Highlight:

baby diaper making machine 800pcs/min

,

high-speed diaper making machine

,

stable production diaper machine

Product Description
Advanced Baby Diaper Making Machine 800pcs/min Stable Production
Product Specifications
Attribute Value
Product Type Automatic
Product Material Stainless Steel
Operating System Touch screen
Usage Disposable baby diaper production
Size Range S, M, L, XL
Safety Features Emergency stop, safety doors, sensors
Condition New
Waste Rate Less than 2%
Waistband Type Big ring waistband
Speed Control Frequency conversion control
Technical Details
Product size 25m*6m*3m (for reference only)
Product structure Upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven, ADL (Acquisition distribution layer) non-woven, leak guard hydrophobic non-woven back sheet, waist band non-woven, color pattern sticker, elastic waist band, discarding sticker.
Control system PLC control system, HMI Operating on the LED touch screen, Configure HDTV monitor
Drive system Servo Drive (Easy to change size), timing belt and flat belt are import products, and all the key parts are import bearings.
Tension system Top tissue paper, bottom tissue paper, hydrophobic nonwoven (leg cuff), top nonwoven, ADL, back sheet, elastic nonwoven are adopt A&B shaft active unwinding by inverter motor.
Safety system It has safety device on the operating side, matched with urgent stop switch. High audio fan uses sound insulation or silencer.
Packaging system According to customer requirements with palletizer machine (double push double exit) adjustable
Materials corrective system Adopt international famous brand deviation correction system
Power 380V, 50HZ three phase five wire
Machine Capacity 400KW (Excluding glue machine and air compressor)
Bleed pressure 0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight 70 Tons approximately

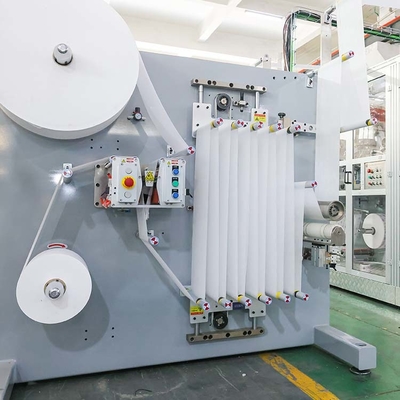

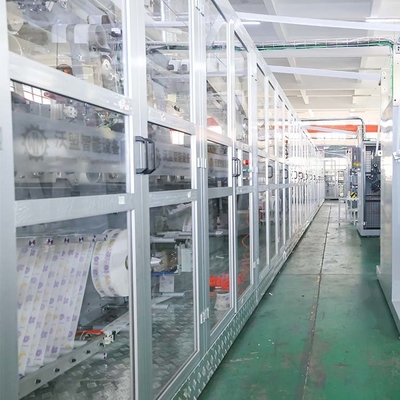

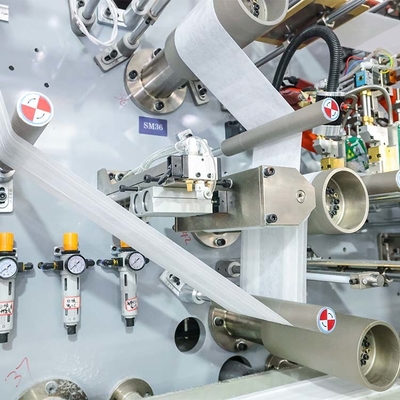

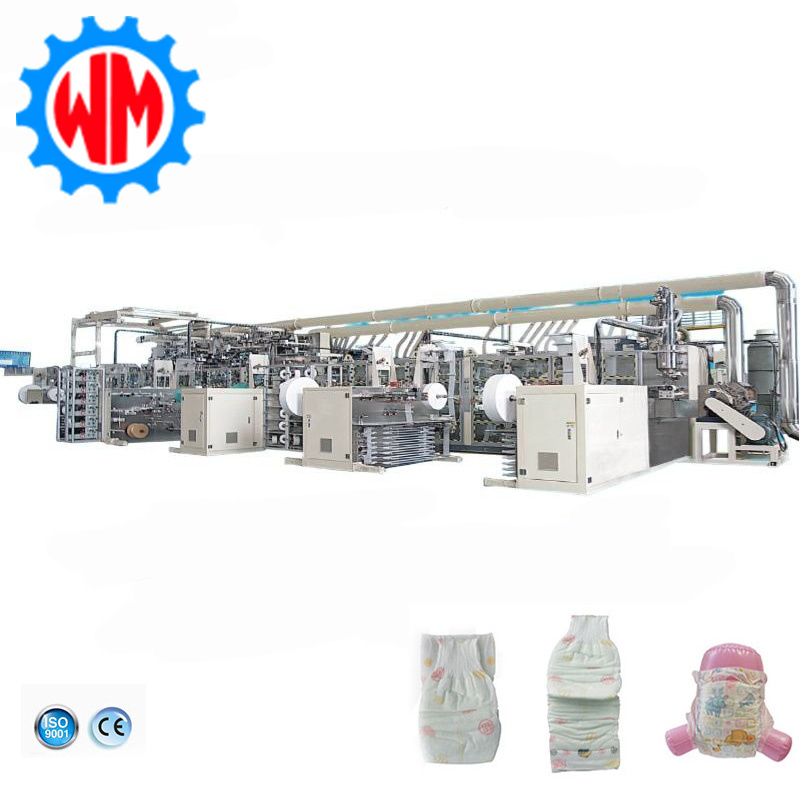

Machine Gallery
Advanced Baby Diaper Making Machine 800pcs/min Stable Production  0 Advanced Baby Diaper Making Machine 800pcs/min Stable Production  1 Advanced Baby Diaper Making Machine 800pcs/min Stable Production  2 Advanced Baby Diaper Making Machine 800pcs/min Stable Production  3 Advanced Baby Diaper Making Machine 800pcs/min Stable Production  4 Advanced Baby Diaper Making Machine 800pcs/min Stable Production  5 Advanced Baby Diaper Making Machine 800pcs/min Stable Production  6 Advanced Baby Diaper Making Machine 800pcs/min Stable Production  7
Company Profile

Quanzhou Womeng Intelligent Equipment Co., Ltd. is located in Quanzhou, the cultural capital of East Asia and the starting point of the Maritime Silk Road. Founded in 2016, it is an enterprise focusing on the R&D, manufacturing and sales of paper equipment. The products cover sanitary napkin equipment, diaper equipment, pant equipment, mattress equipment, pad equipment, etc.

The company has excellent products, professional sales and technical teams, complete supporting facilities, and according to different market product specifications, each equipment is customized according to the actual needs of users, and has rich experience and technical capacity in the design and production of equipment.

Adhering to the business philosophy of honesty, cooperation and win-win, the company wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the greatest extent. Serving customers and achieving customers, "pioneering and innovating, pursuing excellence" is the constant pursuit of Womeng Equipment. We sincerely look forward to cooperating with new and old customers to create the future!

Product Advantages

Fit the characteristics of baby diapers and ensure the core experience of the product

Precisely meet the core demands of baby diapers for being "soft and skin-friendly, three-dimensional leak-proof, and instantly absorbent and dry": The production line can stably achieve uniform bonding of soft non-woven fabric, avoiding edge friction damage to the baby's skin. The elasticity control of the three-dimensional leak-proof enclosure is precise, ensuring that it fits the legs tightly without side leakage when worn, and at the same time, it does not pinch the delicate skin of infants.

High positioning and wrapping accuracy of the water-absorbing core: It can precisely control the mixing ratio and laying position of the water-absorbing resin and the pile pulp, avoiding local leakage caused by core displacement, ensuring the core performance of the diaper of "fast absorption and firm locking", and helping the customer's product gain a good reputation among parents.

Flexibly adapt to multi-scenario products and cover global market demands

Support for quick switching between multiple specifications and multi-functional diapers We can flexibly produce diapers in various sizes (NB/S/M/L/XL, suitable for babies of different weights) and with different functions (daily light and thin style, night thickened style, anti-red bottom breathable style, swimming special style). There is no need for large-scale equipment modification, meeting customers' product planning for different markets (for example, in tropical regions, we mainly promote light and thin breathable styles) For high-latitude regions, the emphasis is on thick and warm versions.

Compatible with flexible switching between "diapers + pull-up pants": In response to the demand for baby pull-up pants in certain markets (such as toddlers), the production line can quickly switch from diaper production to pull-up pants production by adjusting the waist elastic compression parameters and cutting molds, helping customers flexibly adjust their product structure to cope with fluctuations in market demand.
