Sanitary Napkin Making Machine
>

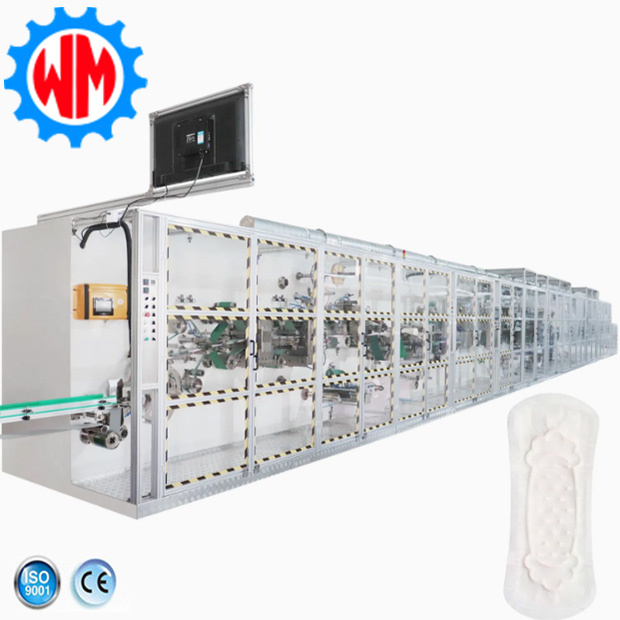

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America

Brand Name: Womeng
Model Number: WM-FSS01
MOQ: 1 piece
Price: $300,000-$400,000
Packaging Details: Seaworthy Wooden Box
Payment Terms: L/C,D/A,D/P,T/T
Detail Information
Place of Origin:
Fujian, China
Certification:
CE
Design:
Full Servo Control System
Design Speed:
1500pcs/min
Voltage:
220V
Air Supply:
0.65-0.85Mpa
Power Supply:
380V/50Hz
Machine Condition:
New
Material:
High-quality Stainless Steel
Finished Product Rate:
≥98%
Supply Ability:
30sets/year
Product Description

Product Info


Product size
25m*2.5m*3m(for reference only)
Product structure
Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.
Control system

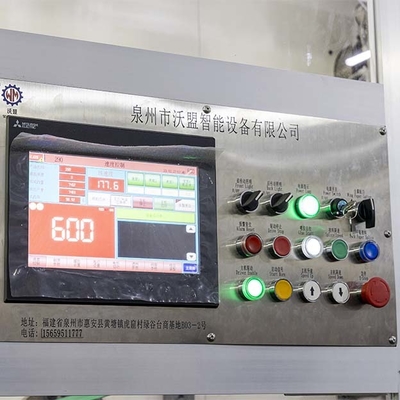

PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system
Servo Drive(Easy to change size), timing belt and flat be
Tension system
Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&Blt are import products, and all the key parts, are import bearings.
shaft active unwinding by inverter motor.
Safety system
It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system
Materials corrective system: Adopt international famous brand deviation correction system
Power
380V, 50HZ three phase five wire
Machine Capacity
400KW (Excluding glue machine and air compressor)
Bleed pressure
0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight 50 Tons approximately

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 0

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 1

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 2

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 3

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 4

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 5

Quanzhou Womeng Intelligent Equipment Co., Ltd. is located in Quanzhou, the cultural capital of East Asia and the starting point of the Maritime Silk Road. Founded in 2016, it is an enterprise focusing on the R&D, manufacturing and sales of paper equipment. The products cover sanitary napkin equipment, diaper equipment, pant equipment, mattress equipment, pad equipment, etc.
The company has excellent products, professional sales and technical teams, complete supporting facilities, and according to different market product specifications, each equipment is customized according to the actual needs of users, and has rich experience and technical capacity in the design and production of equipment.
Adhering to the business philosophy of honesty, cooperation and win-win, the company wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the greatest extent. Serving customers and achieving customers, "pioneering and innovating, pursuing excellence" is the constant pursuit of Womeng Equipment. We sincerely look forward to cooperating with new and old customers to create the future!

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 6

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 7


High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 8

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 9

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 10

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 11

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 12

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 13

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 14

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 15

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 16

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 17

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 18

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 19

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 20

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 21

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 22

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 23

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 24

High Standard 1500pcs/min Sanitary Napkin Making Production Line Export to South America 25

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com



Flexible production is adapted to local demands


The ability to quickly change models in multiple specifications


The modular structure supports quick switching between daily-use (240mm), nightuse (320mm), and pad (150mm) (with a changeover time of no more than 25 minutes), meeting the production demands of "multiple categories and small batches" in the South American market (such as customized versions for Brazilian supermarkets and special supplies for Mexican pharmacies).


Support the production of local characteristic products


Ultra-thin breathable sanitary napkins (thickness ≤0.8mm), equipped with a high-speed breathable film composite device, address the "stuffy pain point" in the tropical climate of South America (Brazilian women's preference rate for breathable products reaches 78%).


Economical sanitary napkins (with a 20% cost reduction), through core structure optimization (such as a mixed absorption layer of wood pulp and high molecular), control the price while ensuring basic absorption performance, meeting the needs of middle and low-income groups in countries like Argentina and Peru.


Compatibility of local raw materials


The equipment is compatible with common raw materials from South America (such as imported eucalyptus fiber non-woven fabric from Brazil and natural rubber elastic waist belts from Colombia). It can automatically adjust parameters to adapt to fluctuations in material moisture content (such as a ±5% variation in the moisture content of raw materials in the Amazon region), and the material loss rate is ≤4%, which is lower than the industry average.
