Diaper Manufacturing Machine
>

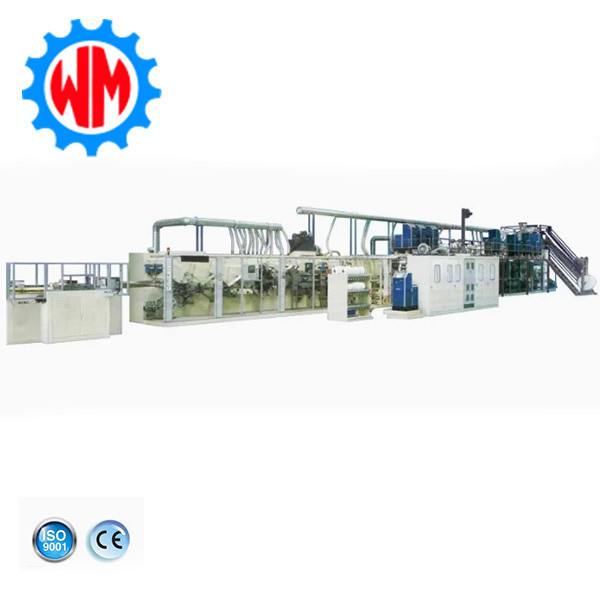

2025 New High Speed Pet Diaper Making Machine with Packaging System

2025 New High Speed Pet Diaper Making Machine with Packaging System

Brand Name: Womeng
Model Number: WM-PD02
MOQ: 1
Price: $500,000.00-$800,000.00
Packaging Details: Seaworthy Wooden Box
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Place of Origin:
Fujian,China
Certification:
CE
After-Sales Service:
Engineers Available To Service Machinery Overseas
Production Speed:
400-800pcs/min
Warranty:
1 Year
Dimension:
25m*6m*3m
Product Size:
XS, S, M, L, XL
Raw Material:
Non-woven Fabric, SAP, Fluff Pulp
Operating Interface:
Touch Screen
Control System:
PLC
Supply Ability:
20sets/year
Highlight:

800pcs/Min Pet Diaper Making Machine

,

400pcs/Min Pet Diaper Making Machine

,

800pcs/Min Pet diapers production line

Product Description

Product Description


This pet diaper production line has achieved fruitful results in technological innovation. In the process of raw material processing, advanced fiber screening technology is used to accurately select soft fibers suitable for pet skin to create a comfortable skin friendly surface. The unique production process of the diversion layer can efficiently guide the liquid to the absorbent core and increase the absorption rate by 40%. In the production process, intelligent mold molding technology can be used to quickly adjust mold parameters according to different pet sizes, and accurately produce diapers suitable for various pets, greatly meeting the diversified needs of the market and ensuring product quality and practicality.



Product Info

Product size
25m*6m*3m(for reference only)
Product structure
Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.
Control system
PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system
Semi Servo Drive, timing belt and flat belt are import products, and all the key parts, are import bearings.
Tension system
Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B
shaft active unwinding by inverter motor.
Safety system
It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system
Materials corrective system: Adopt international famous brand deviation correction system
Power
380V, 50HZ three phase five wire
Machine Capacity
230KW (Excluding glue machine and air compressor)
Bleed pressure
0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight 60 Tons approximately

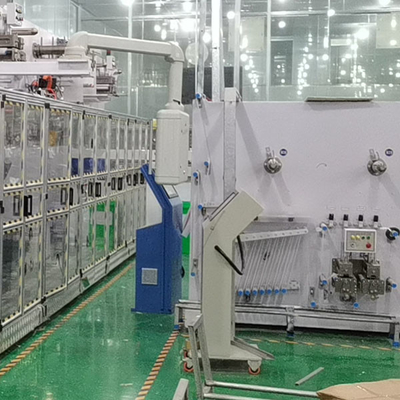

2025 New High Speed Pet Diaper Making Machine with Packaging System 0

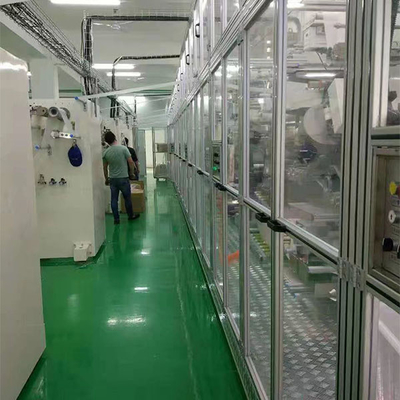

2025 New High Speed Pet Diaper Making Machine with Packaging System 1

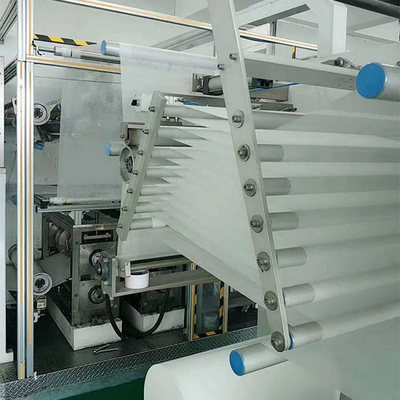

2025 New High Speed Pet Diaper Making Machine with Packaging System 2

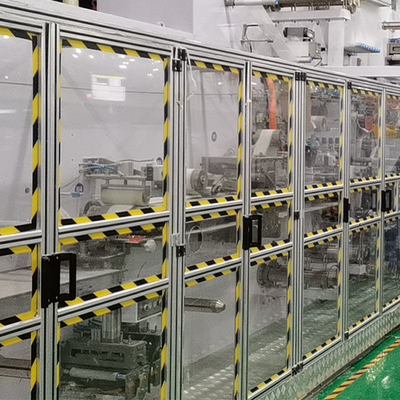

2025 New High Speed Pet Diaper Making Machine with Packaging System 3

2025 New High Speed Pet Diaper Making Machine with Packaging System 4

2025 New High Speed Pet Diaper Making Machine with Packaging System 5

Quanzhou Womeng Intelligent Equipment Co., Ltd. is located in Quanzhou, the cultural capital of East Asia and the starting point of the Maritime Silk Road. Founded in 2016, it is an enterprise focusing on the R&D, manufacturing and sales of paper equipment. The products cover sanitary napkin equipment, diaper equipment, pant equipment, mattress equipment, pad equipment, etc.
The company has excellent products, professional sales and technical teams, complete supporting facilities, and according to different market product specifications, each equipment is customized according to the actual needs of users, and has rich experience and technical capacity in the design and production of equipment.
Adhering to the business philosophy of honesty, cooperation and win-win, the company wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the greatest extent. Serving customers and achieving customers, "pioneering and innovating, pursuing excellence" is the constant pursuit of Womeng Equipment. We sincerely look forward to cooperating with new and old customers to create the future!

2025 New High Speed Pet Diaper Making Machine with Packaging System 6

2025 New High Speed Pet Diaper Making Machine with Packaging System 7


2025 New High Speed Pet Diaper Making Machine with Packaging System 8

2025 New High Speed Pet Diaper Making Machine with Packaging System 9

2025 New High Speed Pet Diaper Making Machine with Packaging System 10

2025 New High Speed Pet Diaper Making Machine with Packaging System 11

2025 New High Speed Pet Diaper Making Machine with Packaging System 12

2025 New High Speed Pet Diaper Making Machine with Packaging System 13

2025 New High Speed Pet Diaper Making Machine with Packaging System 14

2025 New High Speed Pet Diaper Making Machine with Packaging System 15

2025 New High Speed Pet Diaper Making Machine with Packaging System 16

2025 New High Speed Pet Diaper Making Machine with Packaging System 17

2025 New High Speed Pet Diaper Making Machine with Packaging System 18

2025 New High Speed Pet Diaper Making Machine with Packaging System 19

2025 New High Speed Pet Diaper Making Machine with Packaging System 20

2025 New High Speed Pet Diaper Making Machine with Packaging System 21

2025 New High Speed Pet Diaper Making Machine with Packaging System 22

2025 New High Speed Pet Diaper Making Machine with Packaging System 23

2025 New High Speed Pet Diaper Making Machine with Packaging System 24

2025 New High Speed Pet Diaper Making Machine with Packaging System 25

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com


Production environment optimization


Low noise, low dust working environment: When designing pet diaper production line, fully consider the impact of production environment on employees and product quality. Soundproof materials and advanced noise reduction technology are used to effectively reduce the noise generated during equipment operation, create a quiet and comfortable working environment for employees, and reduce the damage of noise to employees' hearing. At the same time, equipped with efficient dust collection system, timely collection and treatment of a small amount of dust that may be generated in the production process, such as fiber debris, raw material powder, etc., to prevent dust pollution products, ensure the cleanliness of the production environment, improve the stability of product quality. ​


Temperature and humidity intelligent regulation: The production workshop where the production line is equipped with temperature and humidity intelligent regulation system, real-time monitoring of temperature and humidity data in the workshop through sensors. If the temperature and humidity exceed the appropriate range, the system automatically starts the air conditioner, dehumidifier, and humidifier to adjust the temperature and humidity. Maintaining the appropriate temperature and humidity environment helps to ensure the stability of the performance of raw materials, such as absorbent materials and non-woven fabrics, and avoid the deformation and embrittlement of raw materials caused by environmental factors, so as to ensure the reliability of product quality.
