Sanitary Napkin Making Machine
>
1200PCS/Min Sanitary Pad Production Line with Packaging System

1200PCS/Min Sanitary Pad Production Line with Packaging System

Brand Name: Womeng
Model Number: WM-FSS17
MOQ: 1 piece
Price: $300,000.00-$600,000.00
Packaging Details: Seaworthy Wooden Box
Payment Terms: L/C,D/A,D/P,T/T
Detail Information
Place of Origin:
Fujian, China
Certification:
CE
Machine Color:
According To Customized
Product Qualification Rate:
Be Equal Or Greater Than 98%
Type:
Sanitary Napkin Machine
Packaging System:
Auto Stacker (Customized Design)
Efficiency:
90%
After-sale Service:
Video Technical Support
Design Speed:
1200pcs/min
Design:
Full Servo Control System
Supply Ability:
30sets/year
Highlight:

1200pcs/min sanitary napkin manufacturing unit

,

1200pcs/min sanitary napkin machine

,

servo sanitary napkin machine

Product Description

Product Description

This production line achieves fine operation at the production management level. Use digital production scheduling system, according to order demand, equipment capacity, raw material inventory and other information, make the optimal production plan, reasonable arrangement of production batches and product specifications. In terms of personnel management, skills training and assessment are carried out, jobs are assigned according to the skill level of employees, and performance incentive mechanisms are set up to improve the enthusiasm of employees. Through fine management, the production line capacity utilization rate has increased to 90%, and the on-time delivery rate of products has reached 98%, effectively improving the market competitiveness of enterprises.



Product Info


Product size
25m*2.5m*3m(for reference only)
Product structure
Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.

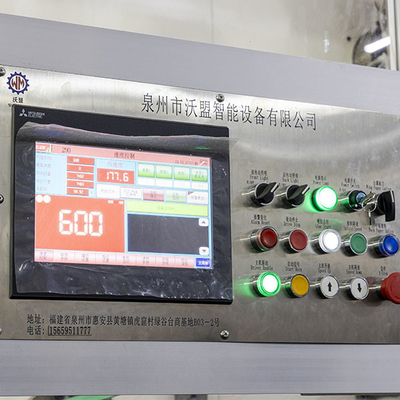

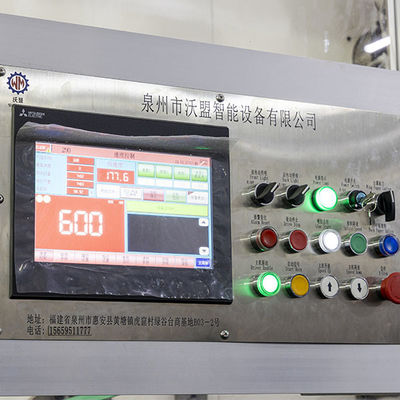

Control system
PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system
Servo Drive(Easy to change size), timing belt and flat be
Tension system
Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&Blt are import products, and all the key parts, are import bearings.
shaft active unwinding by inverter motor.
Safety system
It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system
Materials corrective system: Adopt international famous brand deviation correction system
Power
380V, 50HZ three phase five wire
Machine Capacity
400KW (Excluding glue machine and air compressor)
Bleed pressure
0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight 50 Tons approximately



Humanization and safety in the production process


Operation safety protection upgrade: sanitary napkin production line is equipped with a full range of safety protection devices. In addition to the usual guard rails and emergency stop buttons, infrared sensing devices are also set up in the dangerous areas of key equipment. When a person strays into a dangerous area during the operation of the equipment, the infrared sensor will be triggered immediately, and the equipment will quickly stop running, effectively avoiding injury to the operator. At the same time, the rotating parts of the equipment are installed with protective covers to reduce safety accidents caused by contact with the rotating parts and provide a safer working environment for employees.


Employee fatigue mitigation design: Considering the fatigue problems that may occur when employees work for long hours, ergonomics are fully considered in the layout and equipment design of the production line. The height and Angle of the operating platform are carefully designed to meet the operating habits of most employees, reducing the bending and stretching of the body and reducing the fatigue of the waist and neck. In addition, in the long-term standing operation position set up adjustable height of the foot mat, so that employees can adjust the standing height according to their own needs, relieve leg fatigue, improve the work comfort and work efficiency of employees.

1200PCS/Min Sanitary Pad Production Line with Packaging System 0

1200PCS/Min Sanitary Pad Production Line with Packaging System 1

1200PCS/Min Sanitary Pad Production Line with Packaging System 2

1200PCS/Min Sanitary Pad Production Line with Packaging System 3

1200PCS/Min Sanitary Pad Production Line with Packaging System 4

1200PCS/Min Sanitary Pad Production Line with Packaging System 5

Quanzhou Womeng Intelligent Equipment Co., Ltd. is located in Quanzhou, the cultural capital of East Asia and the starting point of the Maritime Silk Road. Founded in 2016, it is an enterprise focusing on the R&D, manufacturing and sales of paper equipment. The products cover sanitary napkin equipment, diaper equipment, pant equipment, mattress equipment, pad equipment, etc.
The company has excellent products, professional sales and technical teams, complete supporting facilities, and according to different market product specifications, each equipment is customized according to the actual needs of users, and has rich experience and technical capacity in the design and production of equipment.
Adhering to the business philosophy of honesty, cooperation and win-win, the company wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the greatest extent. Serving customers and achieving customers, "pioneering and innovating, pursuing excellence" is the constant pursuit of Womeng Equipment. We sincerely look forward to cooperating with new and old customers to create the future!

1200PCS/Min Sanitary Pad Production Line with Packaging System 6

1200PCS/Min Sanitary Pad Production Line with Packaging System 7


1200PCS/Min Sanitary Pad Production Line with Packaging System 8

1200PCS/Min Sanitary Pad Production Line with Packaging System 9

1200PCS/Min Sanitary Pad Production Line with Packaging System 10

1200PCS/Min Sanitary Pad Production Line with Packaging System 11

1200PCS/Min Sanitary Pad Production Line with Packaging System 12

1200PCS/Min Sanitary Pad Production Line with Packaging System 13

1200PCS/Min Sanitary Pad Production Line with Packaging System 14

1200PCS/Min Sanitary Pad Production Line with Packaging System 15

1200PCS/Min Sanitary Pad Production Line with Packaging System 16

1200PCS/Min Sanitary Pad Production Line with Packaging System 17

1200PCS/Min Sanitary Pad Production Line with Packaging System 18

1200PCS/Min Sanitary Pad Production Line with Packaging System 19

1200PCS/Min Sanitary Pad Production Line with Packaging System 20

1200PCS/Min Sanitary Pad Production Line with Packaging System 21

1200PCS/Min Sanitary Pad Production Line with Packaging System 22

1200PCS/Min Sanitary Pad Production Line with Packaging System 23

1200PCS/Min Sanitary Pad Production Line with Packaging System 24

1200PCS/Min Sanitary Pad Production Line with Packaging System 25
